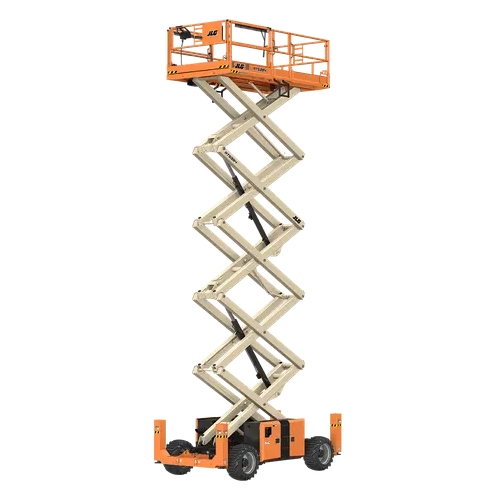

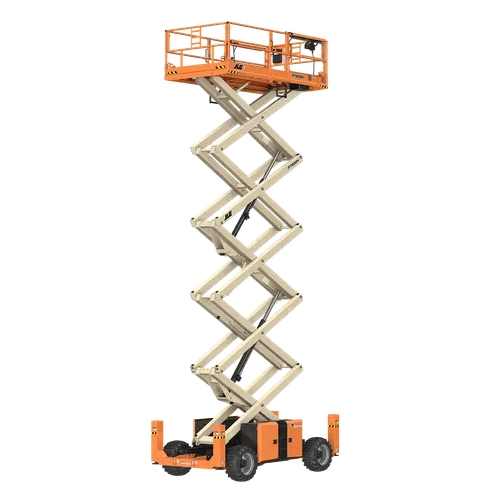

With a platform height of 53 ft. and a standard 4 ft. deck extension, the JLG RT5394 is the biggest scissor lift available, providing more space for people and materials.
This new model designation of the former 530LRT features an optimized power train for greater fuel efficiency and a standard oscillating axle that enhances terrainability across uneven surfaces while maintaining stability.
Performance:
Max Platform Capacity: 1,500–lb
Turning Radius: 9–ft 0–in
Dimensional Data:
Machine Height: 10–ft 1–in
Machine Length: 16–ft 0–in
Machine Width: 7–ft 7–in
Reach Specifications:
Max Platform Height: 53–ft 0–in
General:
Machine Weight: 17,110–lb
Number of Occupants (Outdoor): 6
